Solenoid Engine - Part 1

A few weeks ago I discovered the wonderful world of solenoid engines. The idea is simple: take a piston engine and replace explosion with electromagnetic field. The best example being the incredible V12 of David Robert.

Efficient? Probably not. Fun? Definitely!

All the engines I found on YouTube use a mechanical switch to energize the coil at the right moment. On Robert’s V12, it is the blue cylinder. This is very similar to the intake camshaft of a piston engine.

While watching the video, I thought that if we replace the mechanical switch with an electronic detection of the rotor’s position, combined with a software-controlled solenoid ignition, we could:

1. remove a mechanism that is not very reliable
2. fine tune the ignition of the solenoids (when and how long it is energized) to control the motor’s speed and optimize energy consumption

I will try to experiment that solution in this article.

Hardware

Unfortunately, I do not have the tools nor the knowhow of David Robert. So, inspired by a lot of projects on YouTube, I took the hacker path and used an old hard drive to build my motor.

The hard drive has two mechanical elements:

1. A brushless motor spinning the disk(s) (the spindle)
2. An oscillating arm holding the read/write heads on one side and a coil surrounded by strong magnets on the other side. The arm is mounted on a pivot and moves when the coil is energized.

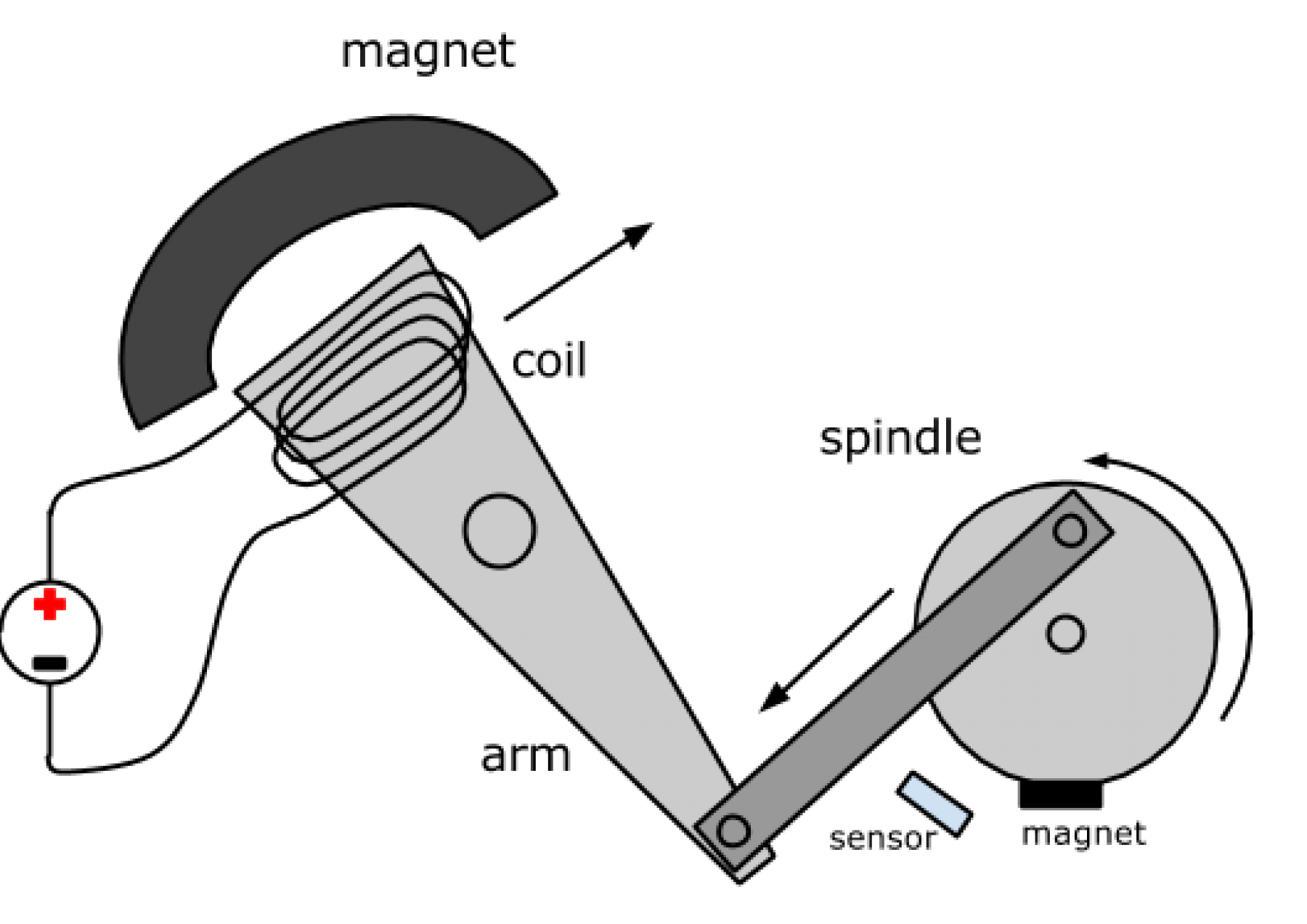

If I add a connecting rod from the oscillating arm to an off-center point on the spindle, I can mimic the mechanism of a solenoid engine.

To detect the spindle’s position, I use a hall effect sensor combined with a small magnet glued to the spindle. The sensor and magnet are set to detect when the spindle is at the top dead center (TDC http://en.wikipedia.org/wiki/Dead_centre).

To control the solenoid, I use one of the integrated H-bridges of a L293D. The advantage of an H-bridge is to be able to energize the coil in two directions, which means I can have two power strokes (push and pull on the spindle).

The sensor and the L293D are connected to an STM32F4-discovery board that will run the software.

Here is the schematic on Fritzing : HDD_solenoid_engine.fzz

Software

The first version of the control software will be somewhat naive. Foremost, I want to check that I can control the engine with the STM32F4. I will explore advanced features later.

The hall effect sensor will be connected to an interrupt. The interrupt will be triggered when the spindle is at TDC. By measuring the time between two interrupts, I can compute the speed of the spindle.

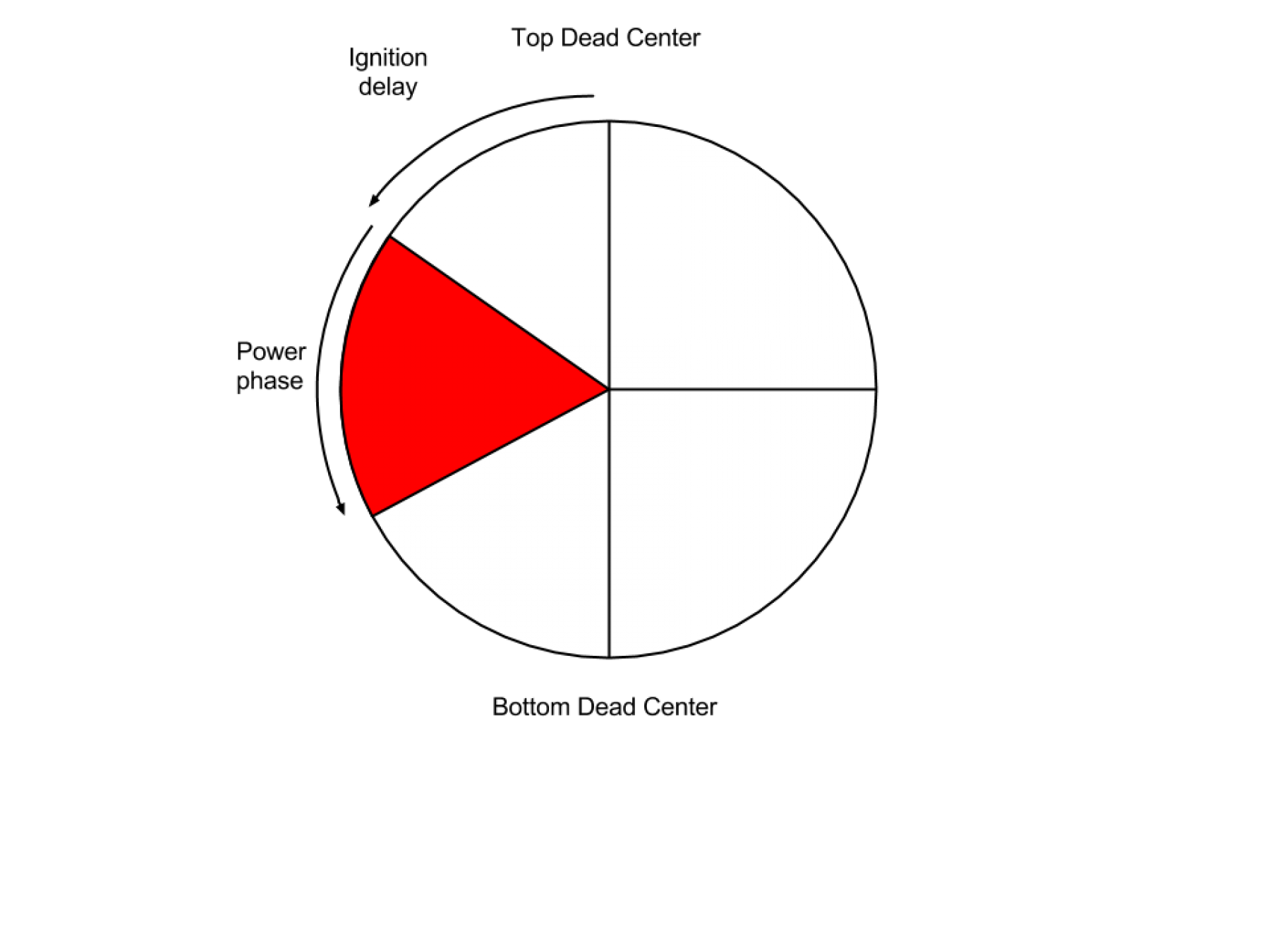

Then I have to compute the best moment to energize the coil (ignition) and how long it should be energized (power phase).

Intuitively, the coil is most efficient 90 degrees after top dead center (ATDC) which means the power phase should be fairly distributed around that point.

For the moment, we arbitrarily decide that the power phase should be 50% of the TDC to BDC time.

To deliver the power command, we will use timing events (the implementation is inspired by the Gem #4). Of course, a more advanced version should use the hardware timers available in the STM32F4 to reduce CPU usage. However, the engine will not exceed 3000 RPM, that’s 50 events per second and therefore not a big deal for the 168MHz micro-controller.

You can find the sources on GitHub: solenoid-engine-controller

That’s it for the software,let’s compile, program the board, plug in everything, give it a small push and see what happens...

In the next part, I will use the screen on the STM32F429 Discovery board to control the ignition and power_phase parameters, we will see how this changes the behavior of the engine.
